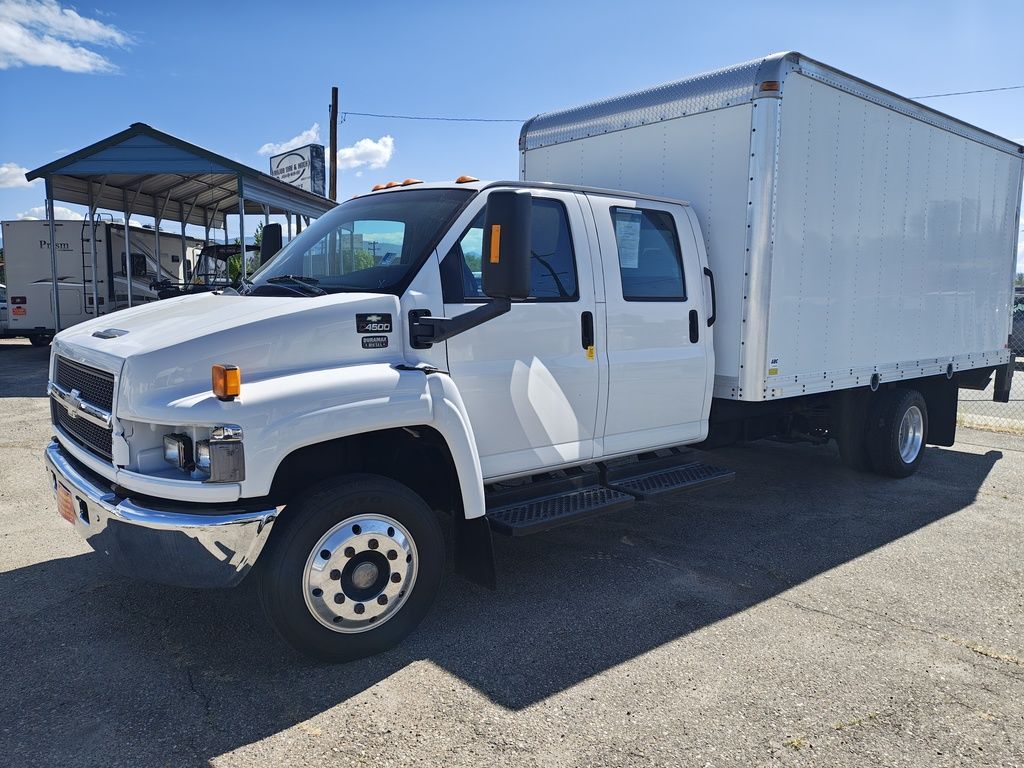

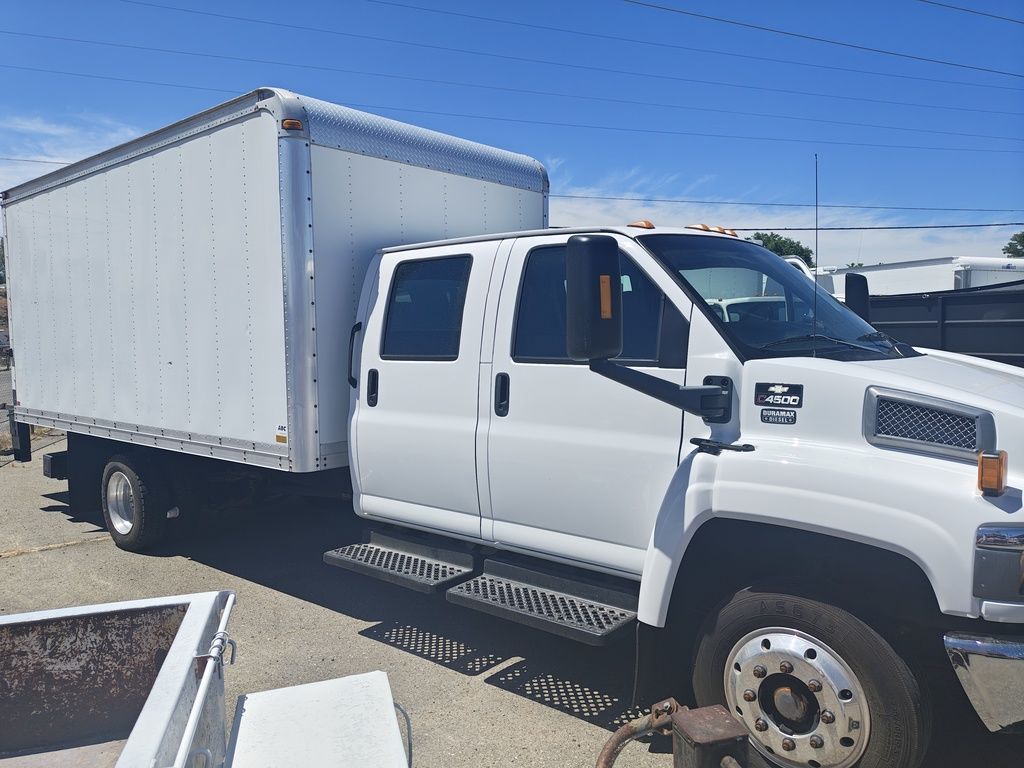

Crew Cab

Medium-Duty Trucks

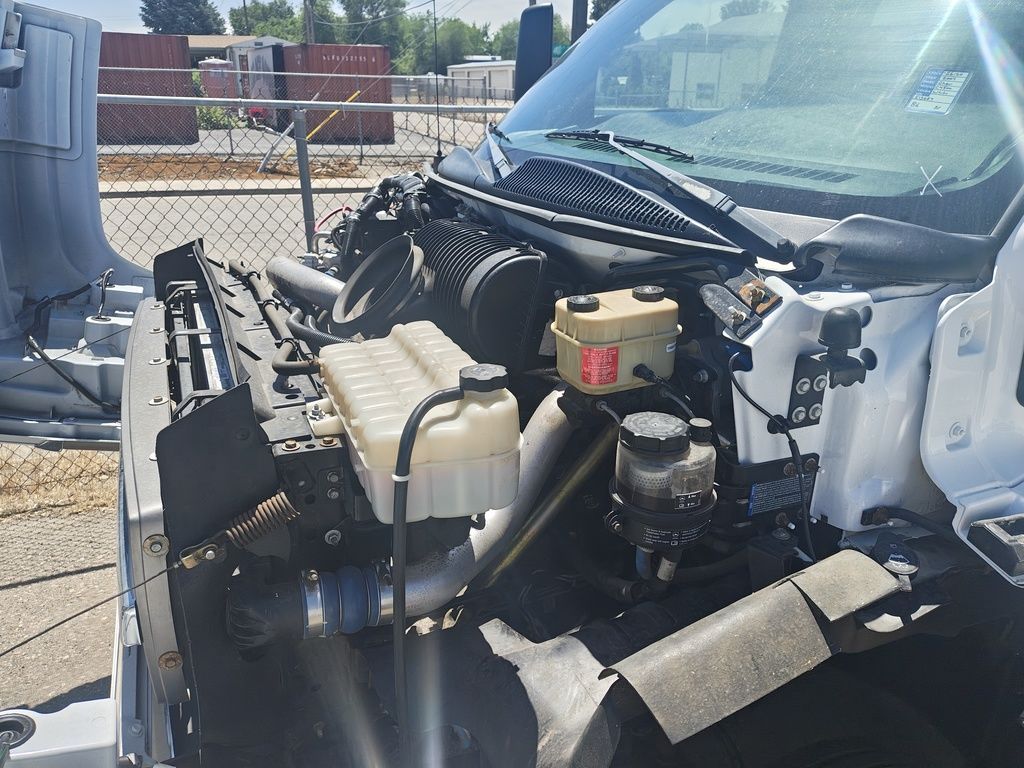

MECHANICAL

GVWR, 16,500 lbs. (7484 kg) capacity - GCVWR limited to 24,000 lb. (10,866 kg)

Air cleaner, dry type

Cooling, anti-freeze protection temperature of -40 degrees F (-40 degrees C)

Road Speed Governor, controlled by the speed rating of the tires ordered which will be less than or equal to 85 mph (137 kph) - 60" (152.4 cm) CA with manual transmission and 4.88 rear axle are speed rated to 80 mph (129 kph)

Alternator, AD230 Delco Remy 105-amp maximum (N/A with YW2 wrecker package)

Battery, single, 600CCA Delphi Freedom 12V - 115-minute reserve capacity @ 27 degrees C, 600 CCA @ -18 degrees C grounded directly to starter, (Requires LQR gasoline engine) (N/A with YW2 wrecker packages)

Exaust, single horizontal - passenger side mounted inside frame rail, stainless-steel with gasoline engines, aluminized steel with diesel engines

Option PTO not required - This option should only be ordered when a customer specifically does not require an electric hand throttle for use with power-take-off provisions. (Note: may delete transmission PTO gear.)

Front axle, 7000 lbs. (3175 kg) capacity - I-beam Wide-trac. Up to 53 degree turn angle, (Includes 4-piston brake apply calipers)

Front suspension, tapered leaf, 7000 lbs. (3175 kg) capacity (includes stabilizer)

Front shock absorber, diameter 1.375" (35mm)

Front stabilizer bar, 2" x 2" square tube (5cm x 5cm)

Front tire manufacturer code, Goodyear (Requires S4A Goodyear)

Front tread, premium, highway

Rear axle, single speed, 11,000 lbs. (4990 kg) capacity - full floating, Includes 2-piston brake applied calipers

Rear axle ratio, 5.13:1 - Not recommended for most applications (Requires gasoline engines only)

Rear suspension, tapered leaf, 11,000 lbs. (4990 kg) capacity (Requires GN1 rear stabilizer bar)

Rear shock absorber, 1.375" (35mm)

Rear stabilizer bar, provides increased load stabilization - improves handling and reduces vehicle roll. Does not adversely affect ride. Diameter 44mm, (Required with taper leaf springs) (Available with multi leaf springs)

Rear tire manufacturer code, Goodyear

Rear tread, premium, highway

Wheelbase, 169" (429.3 cm) - with 60" (152.4) CA and 121 (307.3 cm) CE. Includes a 8 mm 80,000 psi (551,600 kPa) yield strength, steel frame, RBM: 824,800 section Modulus 10.31

Frame, 8mm 80,000 psi (551,600 kPa) yield strength, steel frame, RBM: 610,400 Section Modulus 7.63

Fuel tank, single, 40-gallon (151L) fuel capacity - gas and diesel, located behind rear axle with fuel fill neck through the frame rail, Includes 2 auxiliary fuel ports and driver side and passenger side fill neck capability MINIMUM OVERHANG = 60" (5 FEET)

Fuel sender assembly. Robust fuel pump

Tethered fuel cap

EXTERIOR

Bumper, front, steel, 96" (243.8 cm) wide - styled to minimized wall to wall turn diameter painted argent

Windows, Solar-Ray tinted - front windows only; excluding rearside and rear windows

Exterior roof drip moldings

Provisions for mounting front license plate

Integral grille and fenders - The grille is the same color as hood with single halogen headlamps.

Mirror, manual, 102" (259 cm) wide load, integral arm, integral convex mirror - black molded composite 12" x 7" (30.5cm x 17.8 cm) with 6" x 7" (15.2cm x 17.8cm) convex section

Paint scheme, solid, upper color, Summit White

Paint scheme, solid, lower color, Summit White

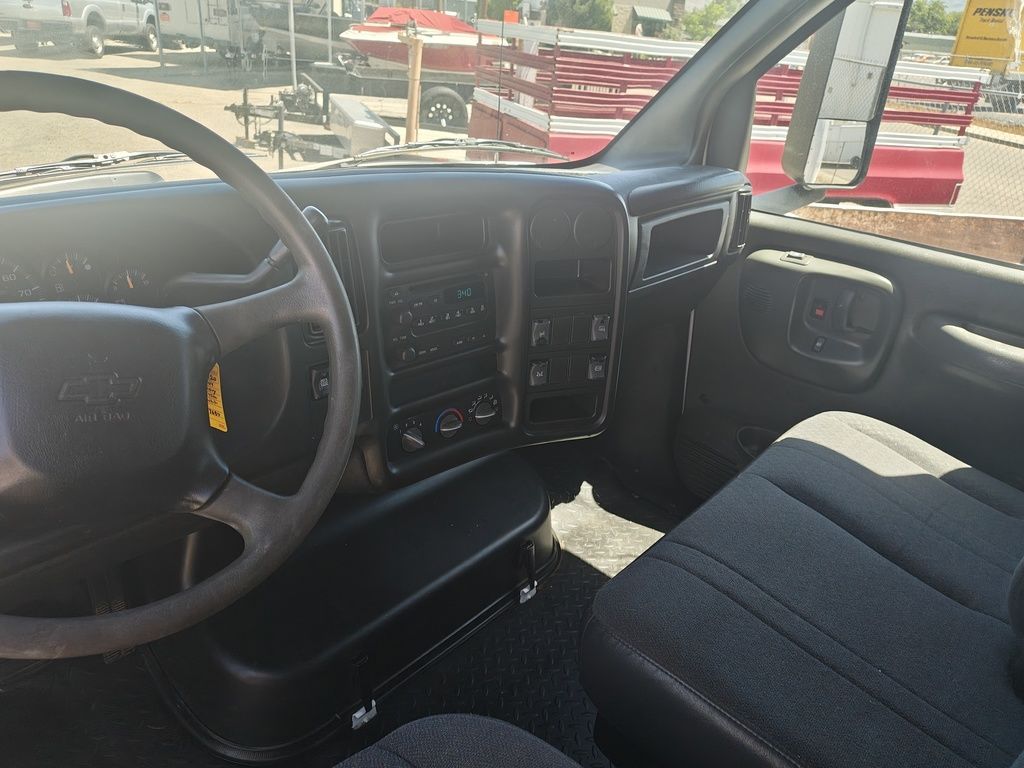

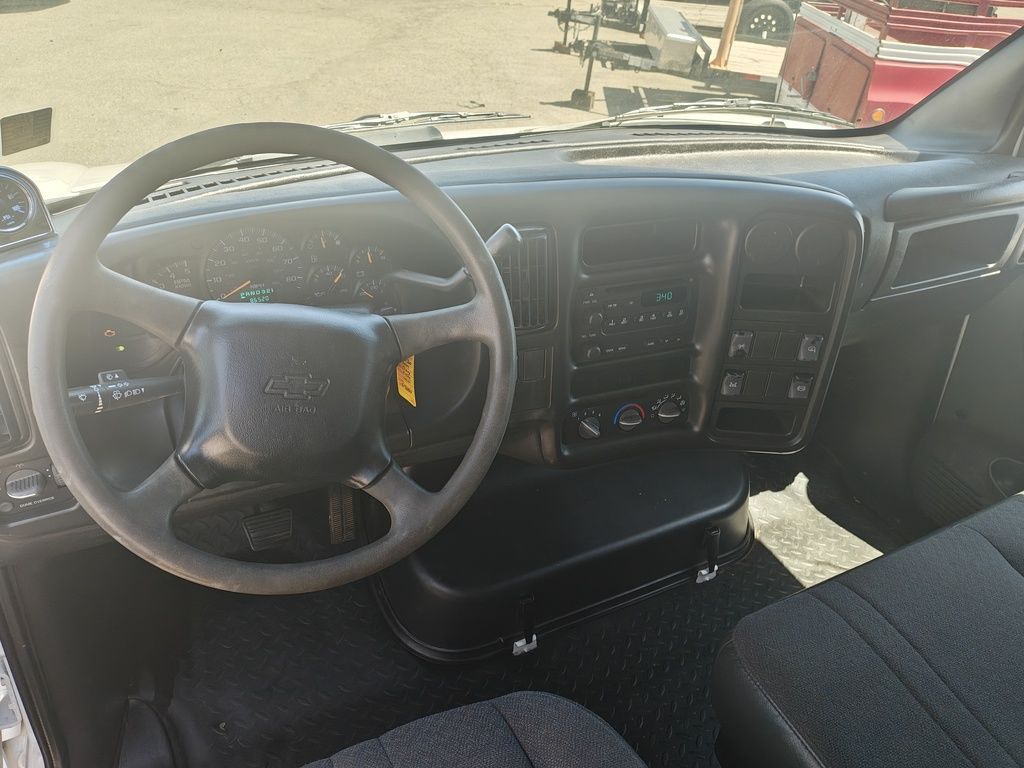

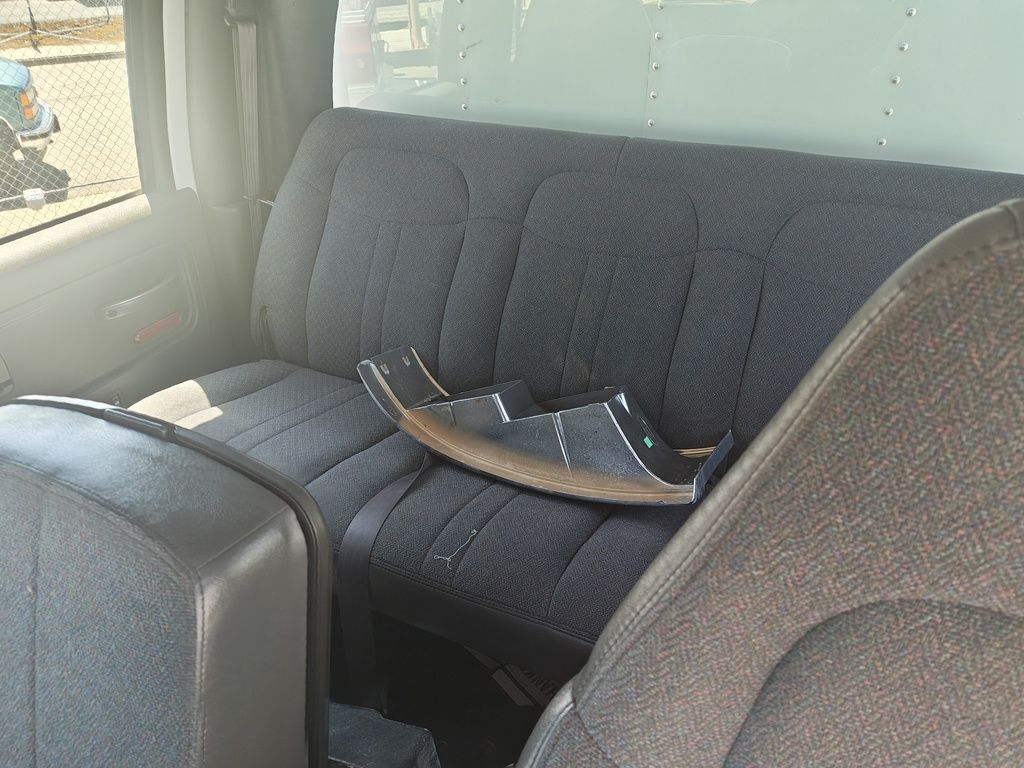

INTERIOR

Molded vinyl floor covering

Vinyl door trim panels - with storage pocket on front doors, beverage holders, and reflector on all doors

Headlamp warning buzzer

Steering wheel, simulated leather

Sunshades, passenger side and driver side, vinyl-covered

Warning tone, key-in-ignition

Seat belt warning indicator

Trim console - located next to driver's seat, removable ashtray cup and two cupholder

Coat hooks (2) located on cab back panel

Cloth
